Overhead Conveyor SystemAutran Vanguard
Enables high-speed transport between processes across a wide range of industries by effectively utilizing overhead space.
- Applications
- Transfer
- Industries
- Display panels, Semiconductors, Food, Automotive, and Logistics
Features
-
1

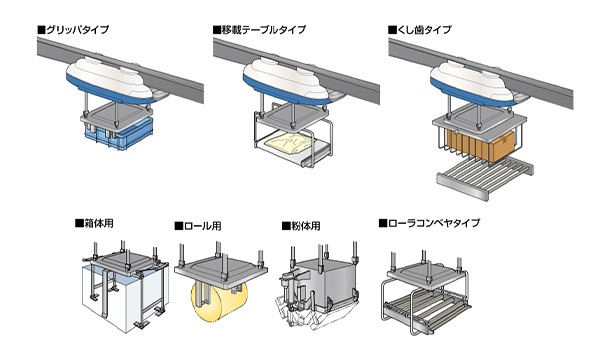

Extensive hanger lineup
In addition to gripper types for standard cases, we offer belt conveyor types as well as swivel types for food handling.
-
2
Excellent operability & maintainability
Integrated with higher-level production systems, it enables unmanned point-to-point transport, while a drop lifter allows ground-level maintenance and inspection.
-
3
Contactless power supply for clean environments
Contactless power supply virtually eliminates dust generation, with extensive experience in food and cleanroom environments.
Index
Images

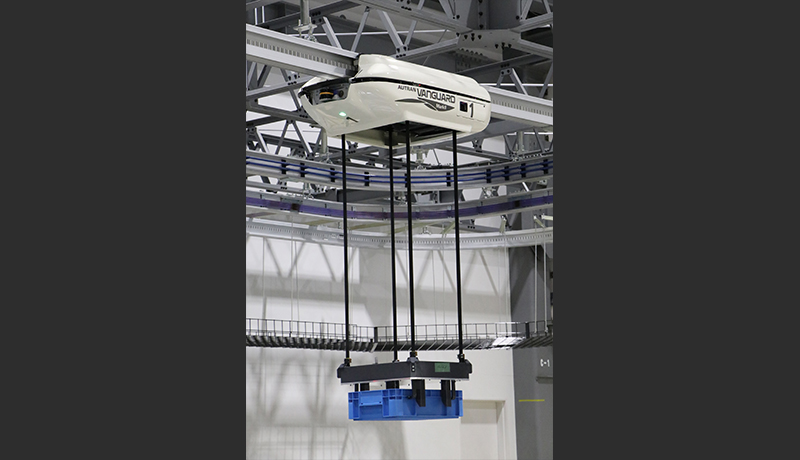

Vertical stroke up to 4 meters as standard belt type.

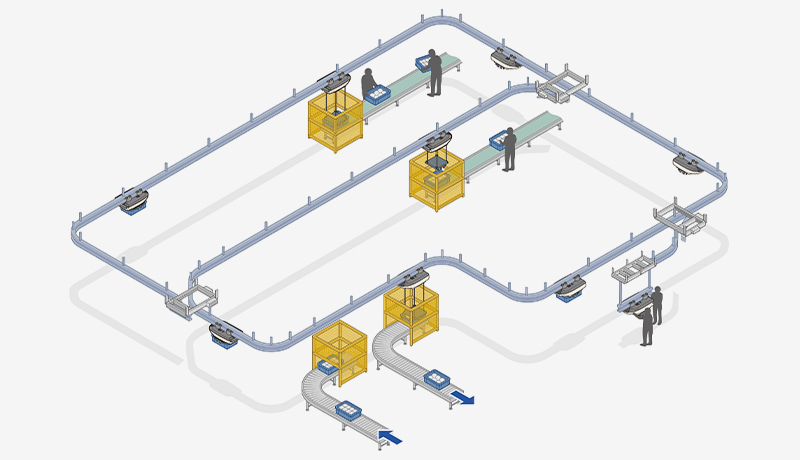

Loop configuration enables flexible layouts.

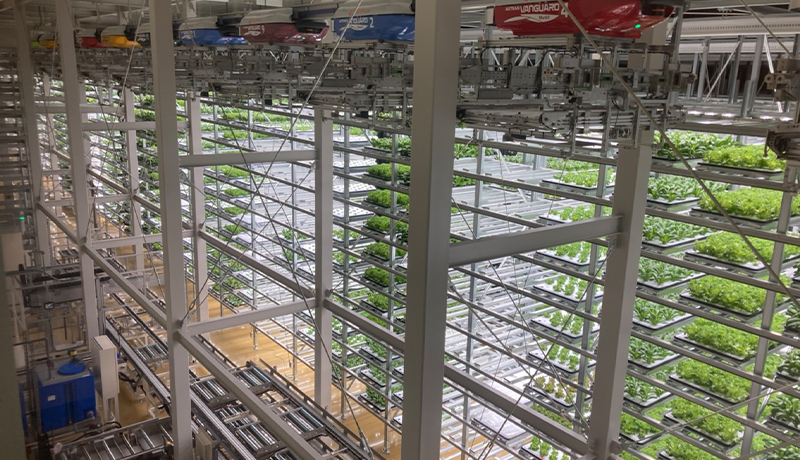

Autrun Vanguard in operation at a lettuce cultivation facility.

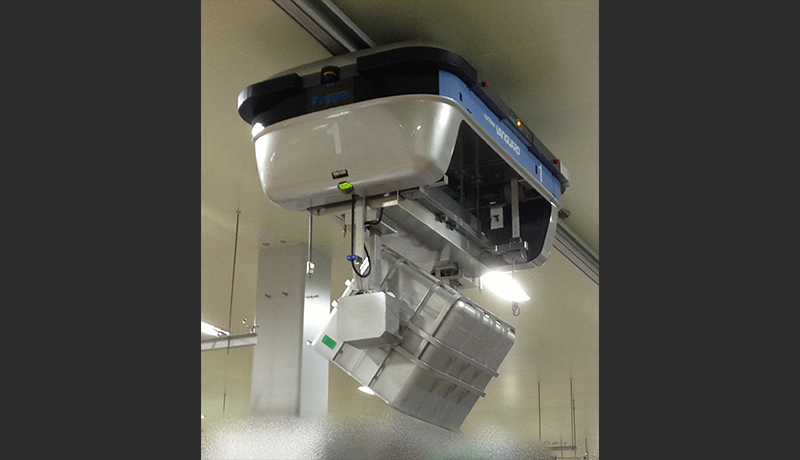

Swivel types are suitable for powder handling.

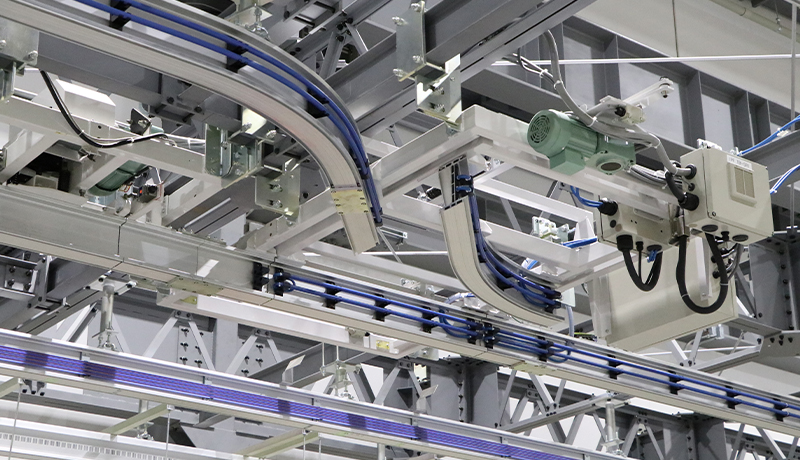

Branching units enable flexible layouts.

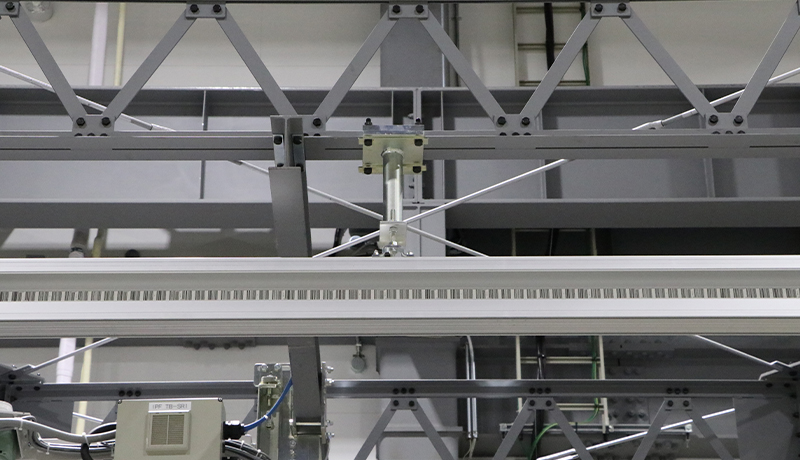

Train position is tracked using barcodes attached to the rail.

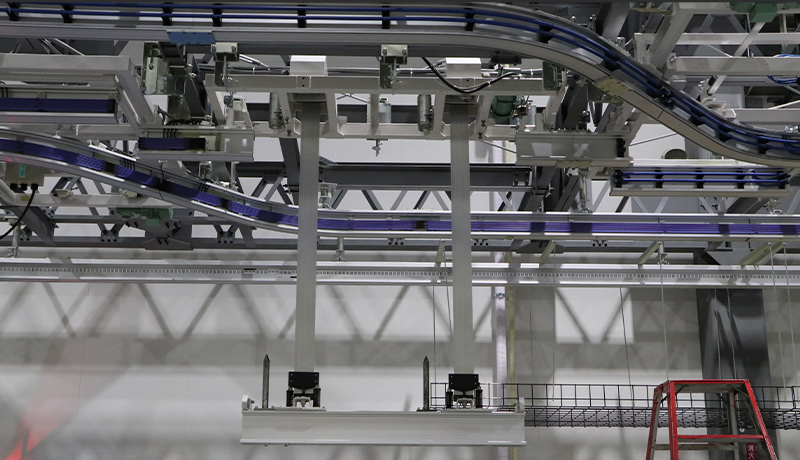

A maintenance drop lifter allows inspections at ground level.

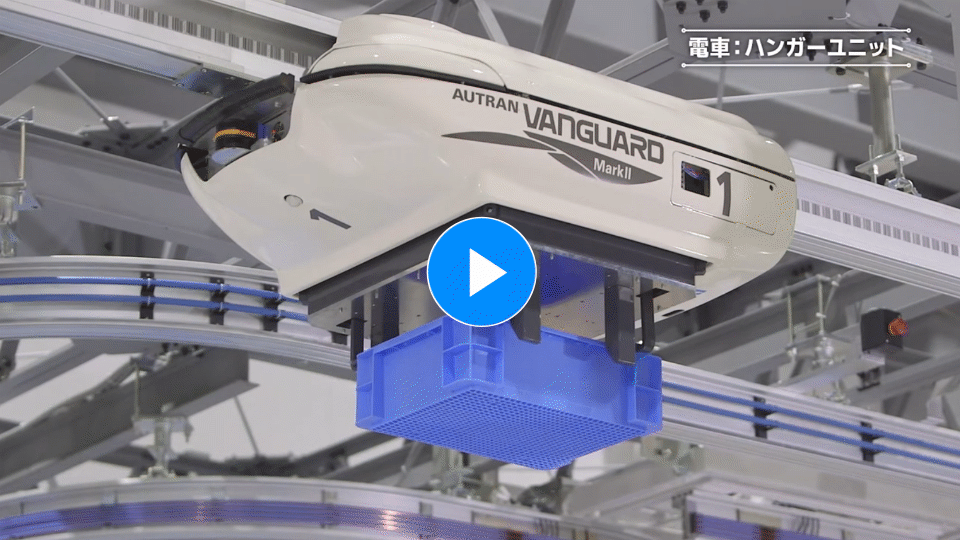

Videos
Standard specifications
| Vehicles specifications | |||
|---|---|---|---|
| Payload capacity | 70kg | 100kg | 200kg |
| Transport speed (Max.) | 220m/min | 120m/min | 120m/min |
| Lifting speed (Max.) | 70m/min | 60m/min | 25m/min |
| Vertical stroke (Max.) | 4,000mm | ||
| Vehicles dimensions | W 730mm x L 1,110mm x H 400mm Available in 9 body colors.  |
||
| Control, power supply, communication methods, and more | |||
|---|---|---|---|
| Control method | Self-driving control method | ||
| Power supply method | Contactless / Trolley power supply | ||
| Position detection method | Optical linear distance sensor Barcode labels |
||
| Communication method | Wi‑Fi (2.4 GHz) | ||
