Compact Low-Temperature Automated Storage SystemLABOSTOCKER® 80mini

#Storage #Picking #Drug Discovery & Research #Food #Automation & Labor Saving #Work Efficiency #Human Error Reduction

Automated -80°C storage system for specimens and biological samples.

Applications: Storage・Picking

Industries: F&B, Life Sciences

Features

1

Exposure-Free Picking

Because picking is performed within the -80°C storage area, only the target samples are retrieved, eliminating unnecessary exposure of other samples.
2

Frost Prevention

By preventing moisture from entering the storage chamber, the system minimizes frost formation and helps maintain sample integrity.
3

Increased Work Efficiency

By eliminating the need for manual work at -80°C, the system enhances safety. Its user-friendly touchscreen interface also contributes to significantly improved operational efficiency.

Index

Images

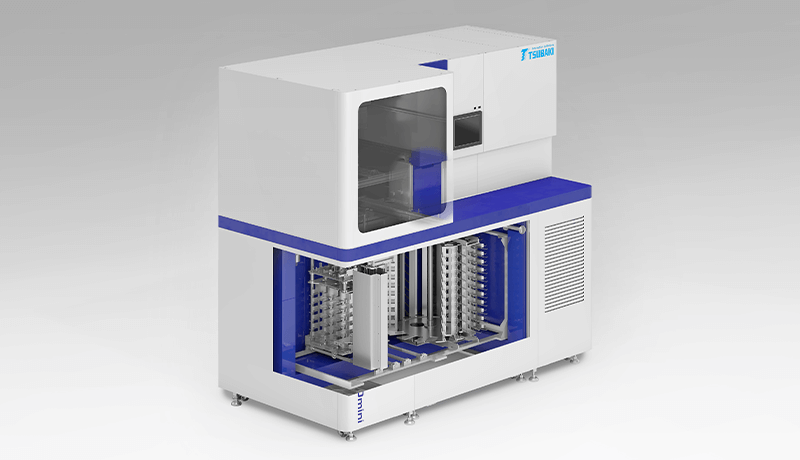

All key components, including the operation panel, picking area, and transport and storage areas, are integrated into a single unit.

Videos

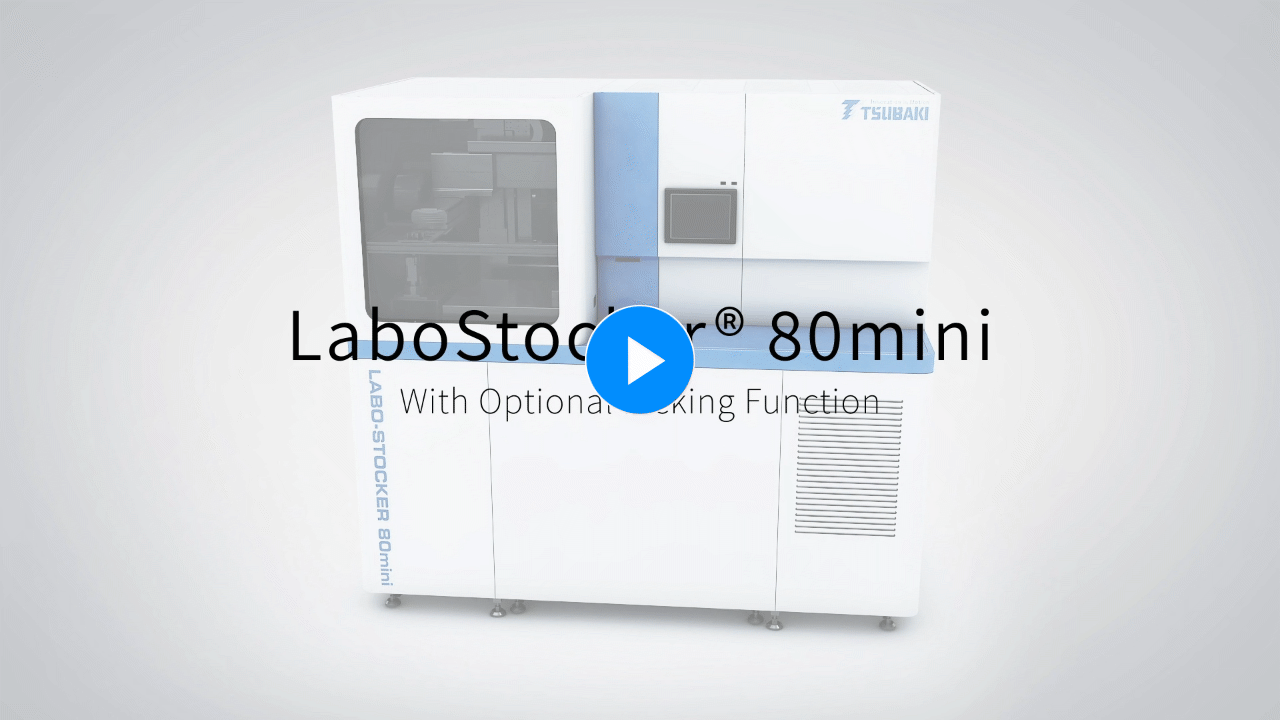

Click the image to watch the video.(External link)

Specifications

Overall Dimensions	W2,010×D1,100×H1,940mm
Storage Capacity	Approx. 12,000 Tubes (1.0 mL)
Storage Temperature	-80℃
Storage/Retrieval Port	1 rack set
Additional Features	Automatic Rack ID Reading Dual refrigeration systems (Maintains low temperatures even if one system fails) Supports CO₂ backup (CO₂ supply equipment is out of scope)
