Tilt Tray Sorter for Medium LoadsLINISORT®R
High-Capacity Piece Sorter for Medium Loads.
- Applications
- Sorting
- Industries
- Transportation, Logistics, Food, Publishing
Features
-
1
Supports Case Sorting
A high-capacity case sorter designed to handle loads of up to 30 kg.
-
2
High Capacity of Up to 10,000 Items per Hour
With a sorting capacity of up to 10,000 items per hour, the system helps improve productivity.
-
3
Linear motor drive
Linear motor drive delivers maintenance-free operation and excellent low-noise performance.
Index
Images

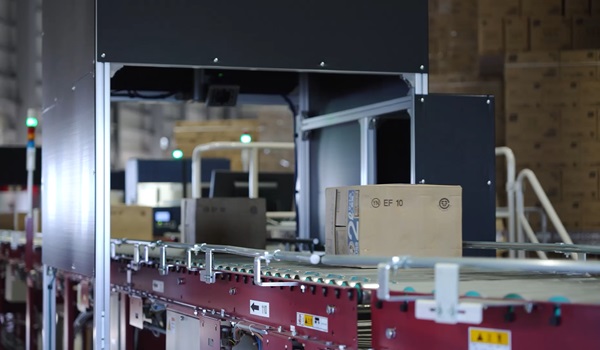

LINISORT®R for Case Sorting.
Videos
Standard Specifications
Scroll to the right to see more.
| Sorting Capability | Maximum 10,000 items/hour | ||||
|---|---|---|---|---|---|
| Sorting Items | Cases, Folding Containers, Newspapers, AD Leaflet, Postal Items, Rice Bags and etc. | ||||
| Sorting Size and Weight | Length | Width | Height | Weight | |
| Maximum | 1,200mm | 800mm | 800mm | 30kg | |
| Minimum | 200mm | 100mm | 15mm | 0.2kg | |
| Feeding method | Automatic (via conveyor) | ||||
| Drive Method | Linear motor drive | ||||
| Power Supply | AC200/220V、50/60HZ | ||||
