Tilt Tray Sorter for Lightweight ItemsLINISORT® S-C∞
Space-saving piece sorter that automates sorting operations.
- Applications
- Sorting
- Industries
- Transportation, Logistics, Food, Apparel, Cosmetics, Toys, Banking
Features
-
1
Spiral Structure
A spiral structure is adopted to prevent feeding mistakes between upper and lower levels.
No lane assignment is required during feeding, even with a two-tier chute.
-
2
Space-Saving Design
The multi-tier structure enables a space-saving design.
Requires as little as approximately 70 m² of installation space.
-
3
High Capacity & Low-Noise Performance
Linear motor drive delivers high capacity, low-noise operation, and energy efficiency.
Sorting Capacity: Up to 4,000 items/hour
Index
Images

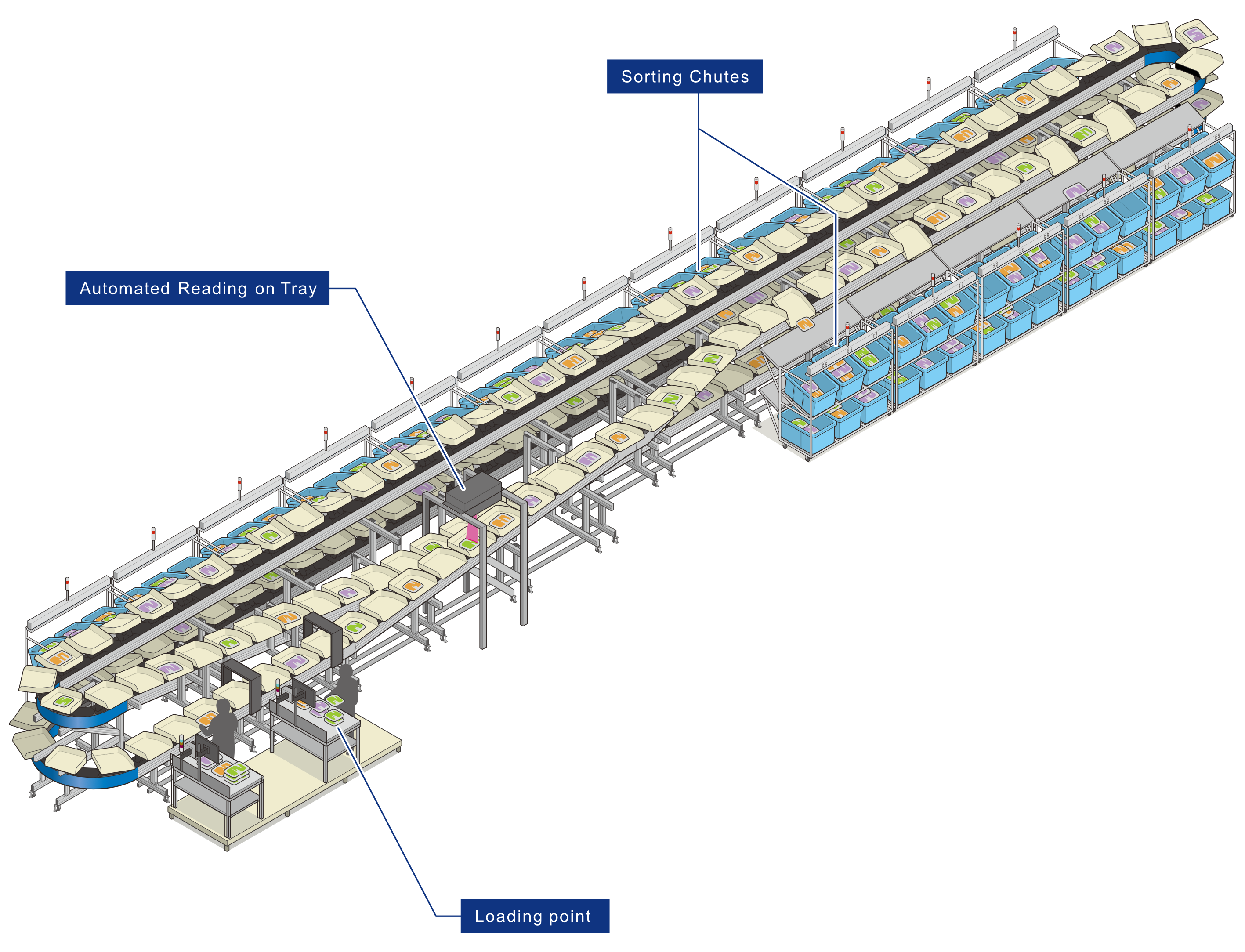

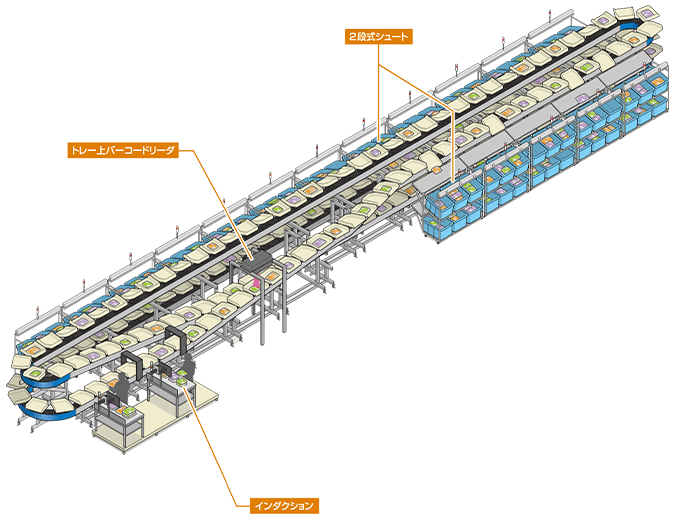

Reference layout
Standard Specifications
*You can scroll horizontally to view.
| Sorting Capacity | Maximum 4,000 items/hour | ||||
|---|---|---|---|---|---|
| Sorting Items | Daily necessities, groceries, apparel, mail, cosmetics, medical supplies, toys, games, etc. | ||||
| Sorting Size (mm) | Maximum: L450×W350×H150 Minimum: L100×W100×H10 |
||||
| Sorting Weight | Maximum: 2 kg Minimum: 0.1 kg |
||||
| Feeding method | Manual / Automatic (via conveyor) | ||||
| Drive System | Linear motor drive | ||||
| Power Supply | AC200/220V, 50/60HZ | ||||
