Tilt Tray Sorter for Light LoadsLinisort®S-E
High-capacity piece sorter for automated sorting of lightweight items.
- Applications
- Sorting
- Industries
- Transportation, Logistics, Food, Apparel, Cosmetics, Toys, and General Merchandise
Features
-
1
High-capacity piece sorter
With a sorting capacity of up to 10,000 items per hour, the system contributes to improved productivity.
-
2
Extensive installation record
An extensive installation record with over 400 systems delivered to a wide range of industries, including apparel, retail, and drugstores.
-
3
Linear motor drive
Maintenance-free drive system with low noise operation.
Index
Images

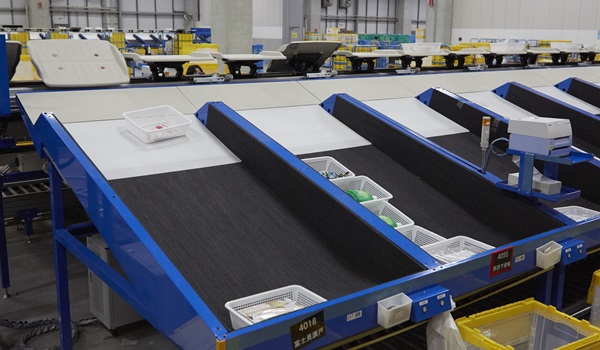

Optimal chute solutions tailored to your products.

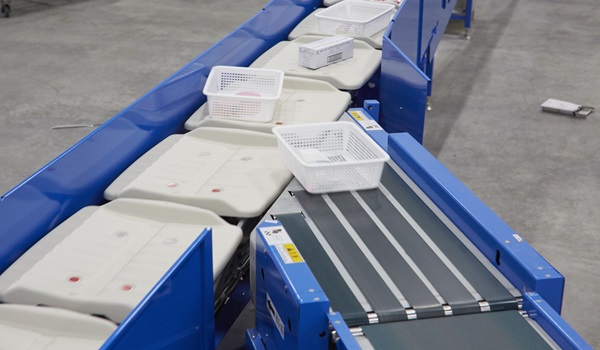

Optional automatic induction further enhances productivity.

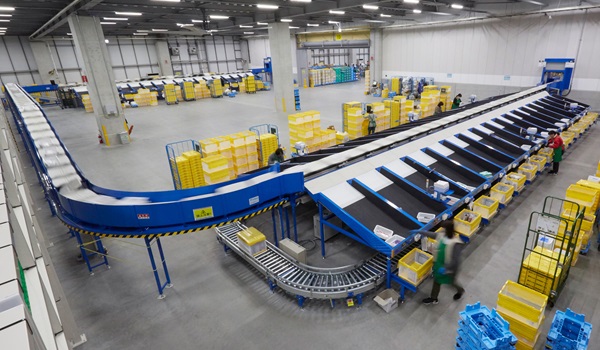

Optimal layouts tailored to your space, throughput requirements, and operational needs.

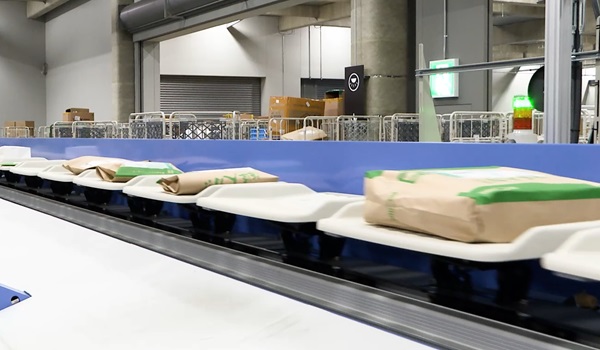

A large number of track record in sorting bagged products.

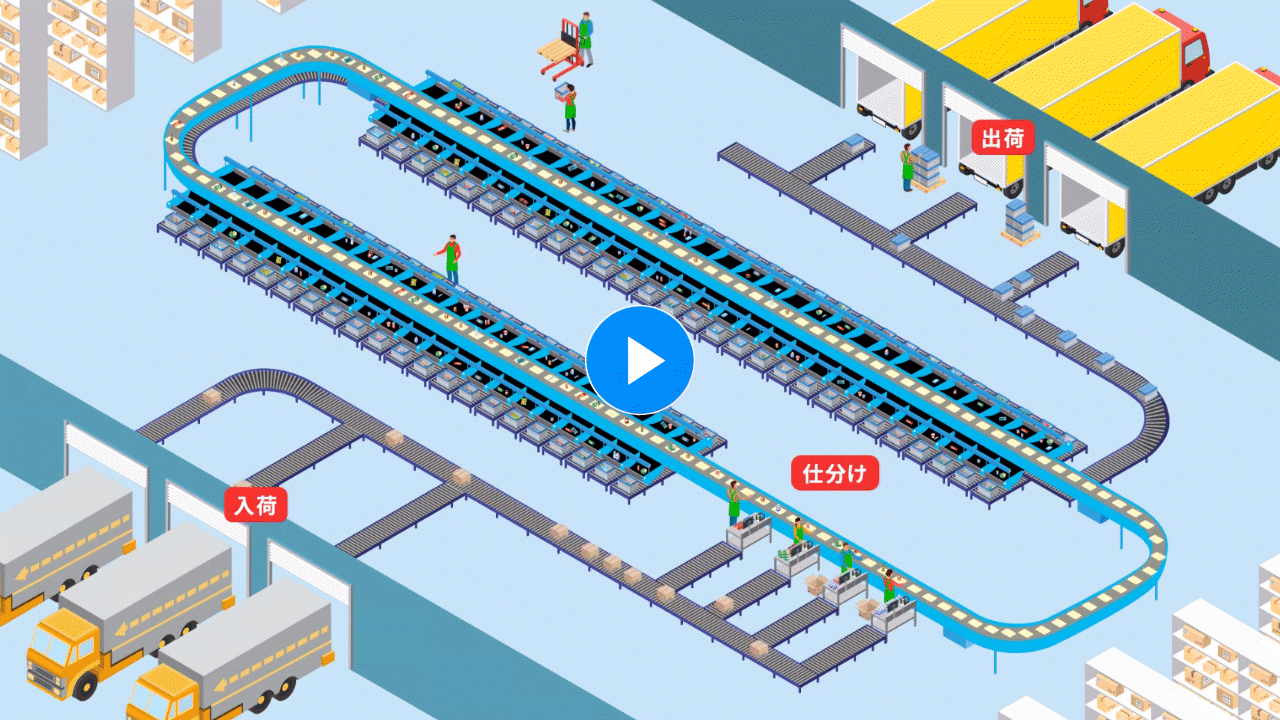

Videos
Standard specifications
Scroll to the right to see more.
| Sorting capacity | Maximum 10,000 items/hour | ||||
|---|---|---|---|---|---|
| Applicable products | Apparel, General Merchandise, Food, Cosmetics/Pharmaceuticals, Toys/Games, and Mail, etc. | ||||
| Applicable item size & weight | Length | Width | Height | Weight | |
| Maximum | 650mm | 450mm | 300mm | 5kg | |
| Minimum | 50mm | 50mm | 2mm | 0.1kg | |
| Induction method | Manual induction / Automatic (conveyor) induction | ||||
| Drive method | Linear motor drive | ||||
| Power supply | AC200/220V、50/60HZ | ||||
