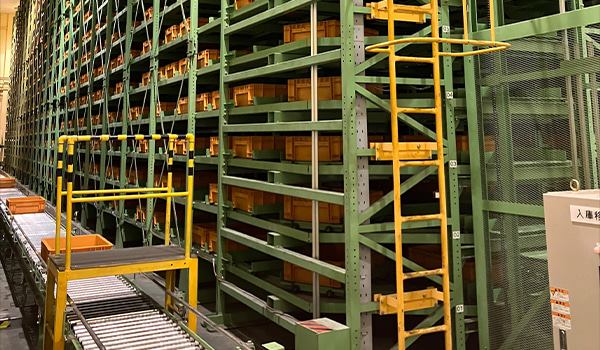

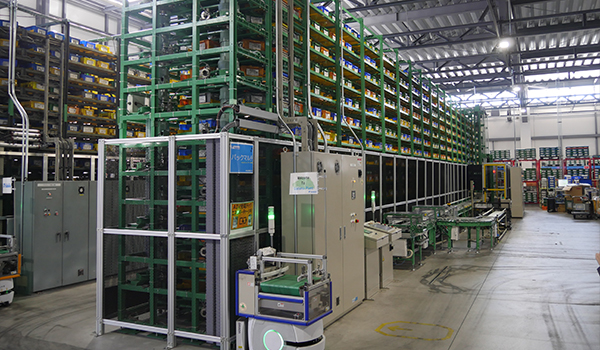

Multi-Tier Horizontal Rotary ShelfPack-U-Veyor Multi
Independent rotation of each tier enables highly efficient storage.
- Applications
- Storage
- Industries
- Machinery, Food, Banking, and Apparel
Features
-
1
High capacity
With each tier rotating independently, the system delivers higher capacity than a single-tier model. It can be easily expanded or linked to additional units, allowing for a flexible, scalable installation.
-
2
Enables advanced automation
By integrating with automatic transfer systems, AMRs, and AGVs, the entire process from receiving and storage to retrieval and supply can be fully automated. Its independently rotating tiers enable rapid response to the demands of upstream and downstream processes.
-
3
Flexible design
Tailored designs based on customer requirements, including shelf height, shelf type, and equipment size to suit the installation space, help improve storage efficiency.
Index
Images

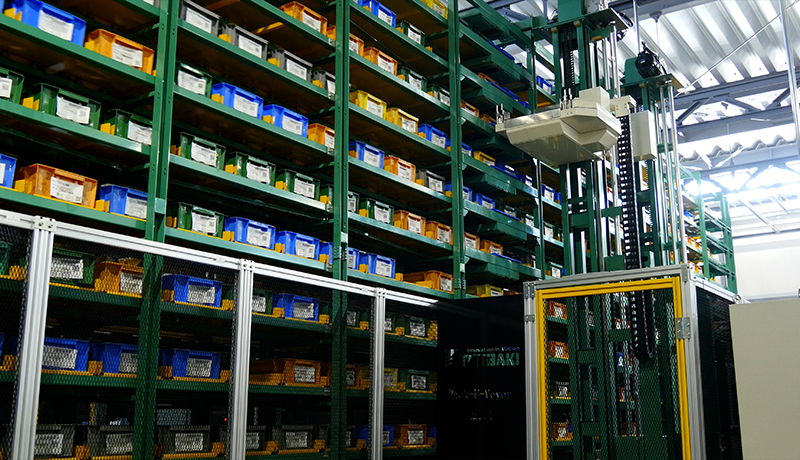

Automatic transfer unit

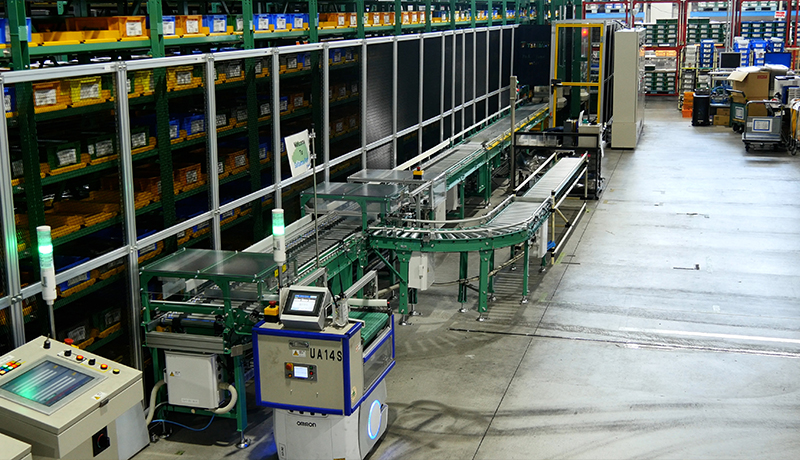

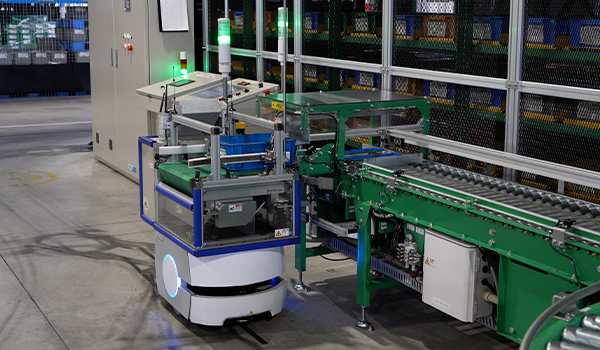

Storage/Retrieval Conveyor
Videos
Standard specifications
Storage items: Container cases, corrugated cases, and other cases
| Basic dimensions | Please contact us for details |
|---|---|
| Basic weight | Up to 30 kg/case |
Rotary shelf
| Number of bays | Please contact us for details |
|---|---|
| Rotation Speed | Up to 30 m/min (Two-Speed Inverter Control) |
| Drive motor | 0.75kW～1.5kW（AC200V） |
Transfer unit
| High-speed rotary transfer unit | Transfer Table Unit | |
|---|---|---|
| Storage/Retrieval Capacity | Up to 500 cases/hour per unit | Up to 180 cases/hour per unit |
| Lifting speed | Up to 20 m/min | Up to 100 m/min |
| Drive motor | 1.5kW～2.2kW（AC200V） | 2.3kW（AC200V） |
| Pusher | Air cylinder type | Air cylinder type |
