Automated High Speed Pivot Wheel SorterQuickSort®

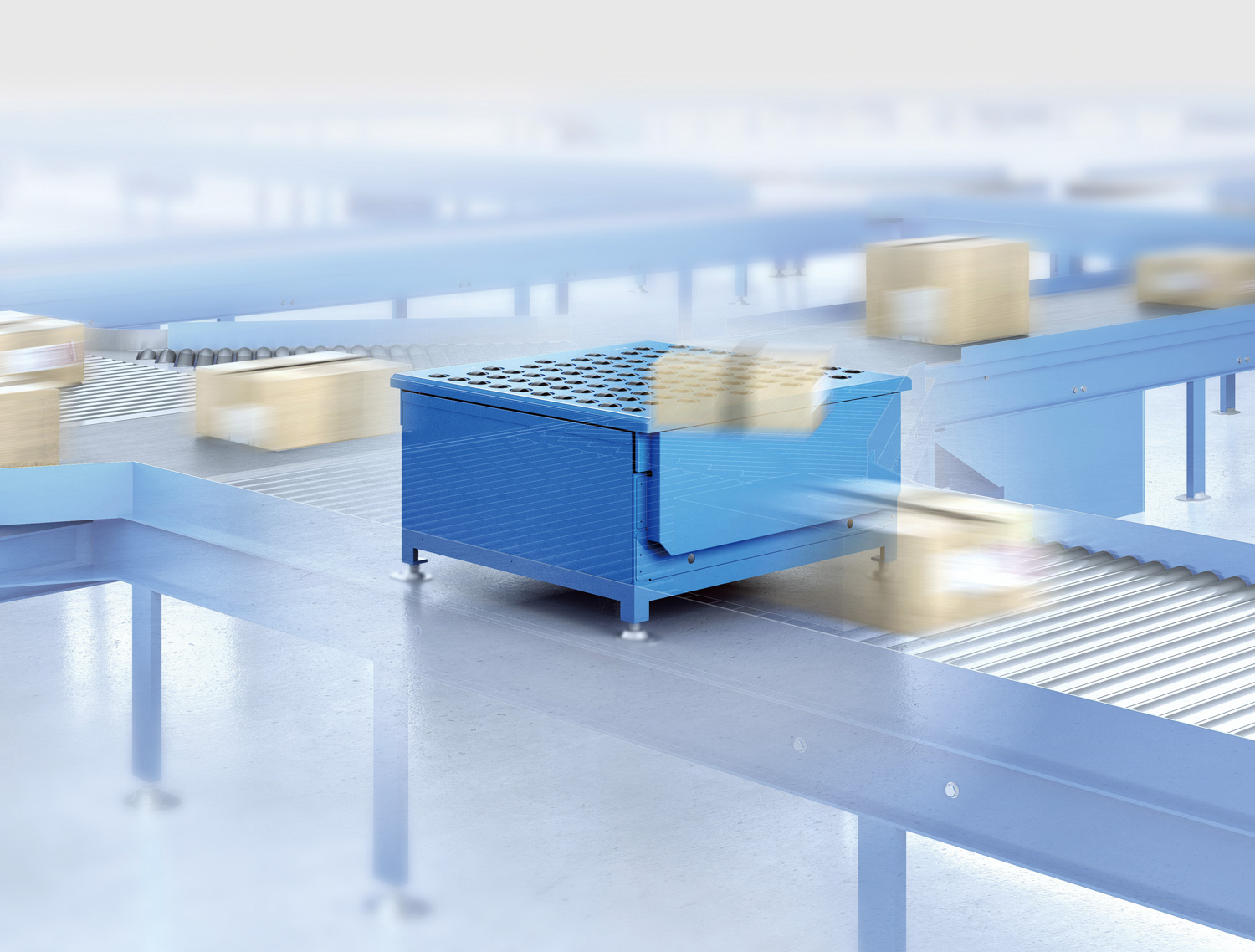

A case sorter installed between conveyors, used for branching and sorting products.
- Applications
- Sorting
- Industries
- Transportation, Logistics, Publishing, Food, Apparel, Cosmetics, and Toys
Features
-
1
Gentle handling

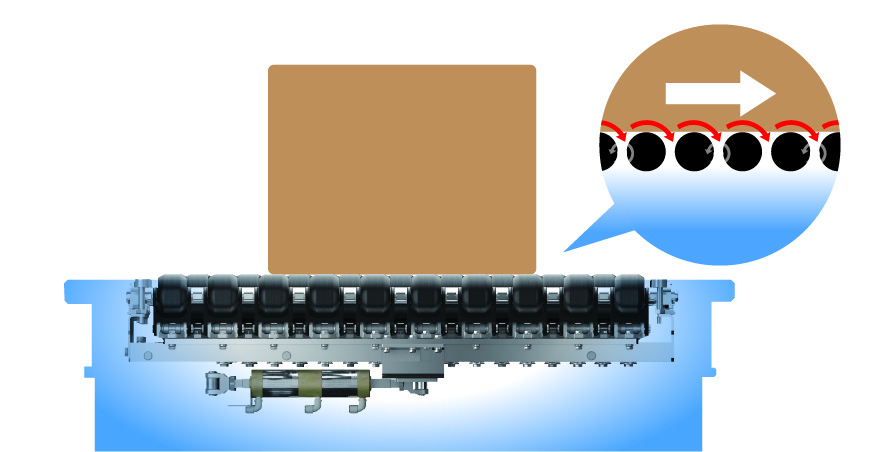

Sorting with roller friction ensures gentle handling without pushing or tilting conveyed items.
-
2
High speed sortation

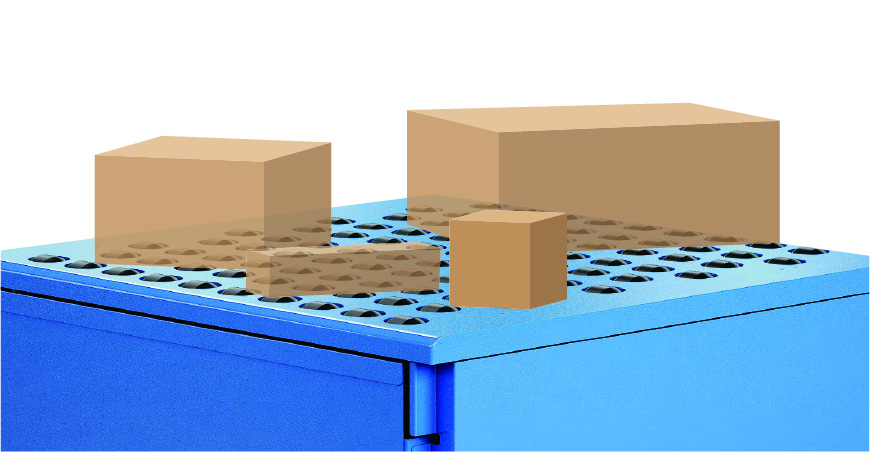

Two adjacent rows of rollers change rotating direction to allow conveyed items to be sorted even when in close proximity to each other.
-
3
Handles various sizes
Rows of evenly spaced rollers at sort intervals enable handling of various sizes.

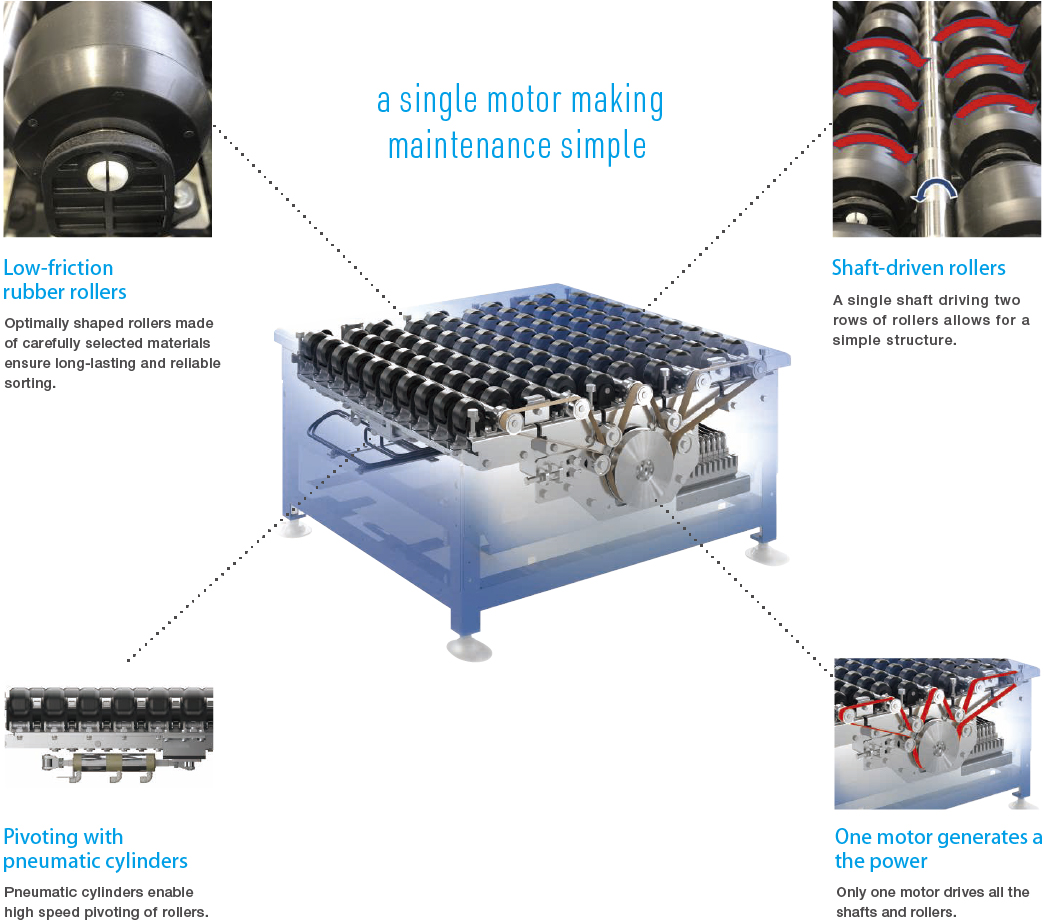

Simple structure and easy maintenance
Index
Videos
Application examples
The modules installed between conveyors enable various ways of automated sortation, such as sorting, crossing, and diverging.

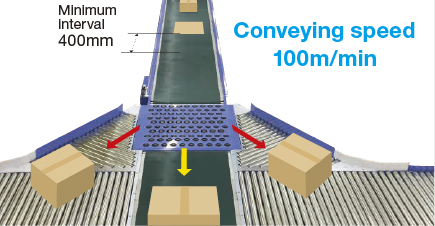

Chute conveyors on both sides of the unit enable high-speed sorting in three directions: left, right, and straight.
Allows the transfer path of conveyed items to be changed between parallel conveyors.
Simply by installing a branch conveyor on either the left or right side of the main unit, a branching line can be easily realized.
Optional chute patterns

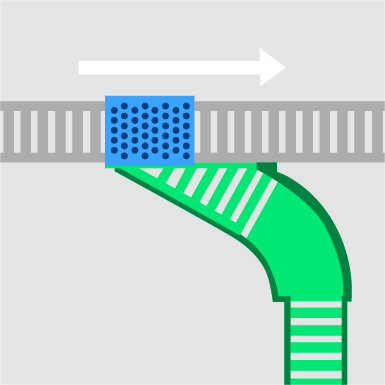

Long-Curve
A long-curved chute enables a larger work area.

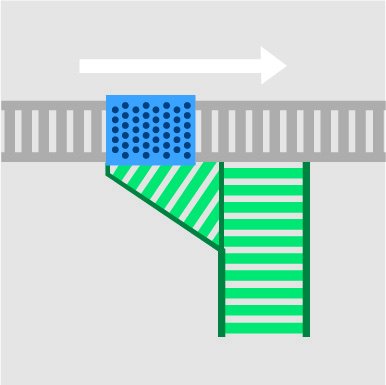

Right-Angle
A right-angled chute saves space, allowing more chutes to be installed.

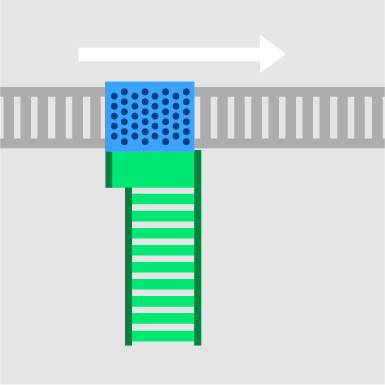

Broad-Right-Angle
A wide chute allows miscellaneous item to be sorted.
Examples of conveyed items
Capable of sorting items of various shapes and sizes.
Unit Sales
- Design and installation can be tailored to best suit your operational site.
- Comprehensive control manuals are provided, enabling customers to manage and operate the system on their own.
- Two models are available.
- Available from a single unit.
Standard specification
※横にスクロールしてご覧いただけます。
| Model | 0810B | 0606B |
|---|---|---|
| Throughput | Up to 7,500 pcs/h *Under the following conditions; conveying speed is 100m/min, and intervals between conveyed items are 800mm. |
|
| Unit dimensions (mm) | 1,030L×845W×500H | 630L×675W×500H |
| Unit weight | 255kg | 146kg |
| Height adjustment range | ±30mm | |
| Conveying speed | Max: 100m/min Min: 60m/min | |
| Dimensions of conveyed items (mm) | Max: 750L×500W×500H Min: 200L×200W×10H |
|
| Minimum interval between conveyed items | 400mm | |
| Weight range of conveyed items | 0.5～30kg | |
| Power supply | Power supply: 200V AC (3 phase, 50/60 hz) *Contact us of other voltages. Control power supply: 24V DC |
|
| Air supply | Lube-free / Dry air / Working pressure: 0.4 Mpa Pneumatic coupling diameter: 12mm, with one-touch fitting. Equipped with tube fitting (1 per unit) |
|
Air consumption (NL/min)
※横にスクロールしてご覧いただけます。
| Troughput (pcs/h) | ||||||
|---|---|---|---|---|---|---|
| 3,000 | 4,000 | 5,000 | 6,000 | 7,000 | ||
| Model | 0606B | 73 | 97 | 121 | 145 | 169 |
| 0810B | 130 | 173 | 216 | 259 | 302 | |
