High-Speed Friction ConveyorSpeedRail Friction
A high-speed friction conveyor for transporting lightweight items.
- Applications
- Transfer
- Industries
- Automobiles, Motorcycles, etc.
Features
-
1
Simple Equipment Configuration

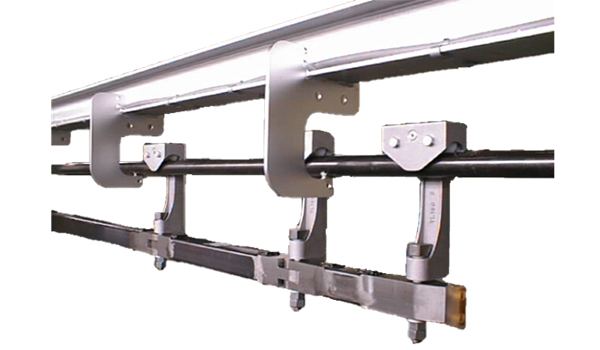

The lightweight carrier is easy to remove, enabling quick maintenance and emergency adjustments.
-
2
Supports Various Layouts

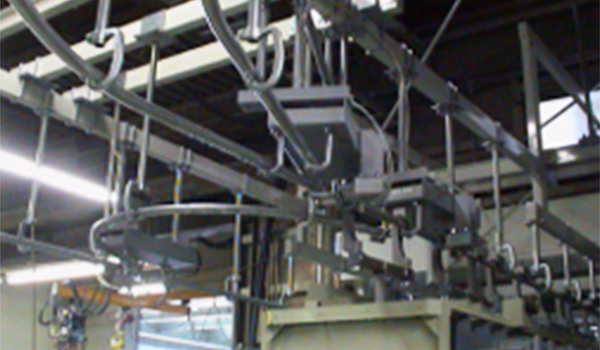

Supports tight-radius curves and inclines, enabling a highly flexible layout with minimal constraints from building structures and surrounding equipment.
-
3
Energy Efficiency
The distributed drive configuration and airless design contribute to energy savings and lower CO2 emissions.
Index
Images

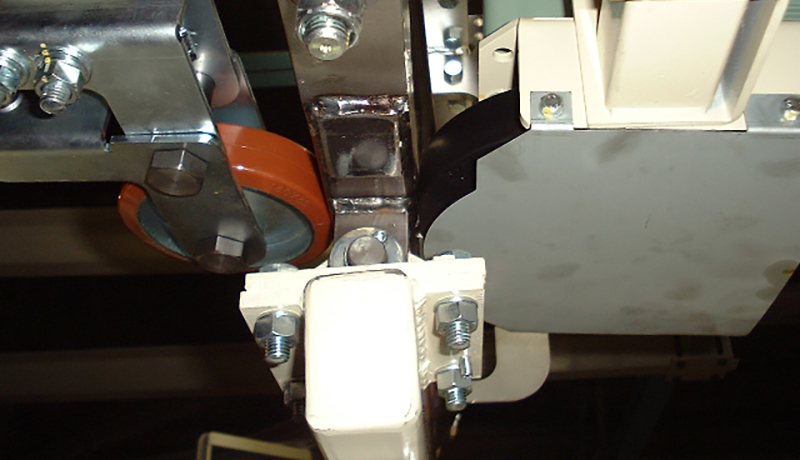

The friction drive system enables energy-efficient operation.
Standard Specifications
| Specification Item | Description | Remarks |
|---|---|---|
| Maximum Conveyance Speed | 52m/min | 60 Hz |
| Maximum Conveyed Item Weight | 250kg | Application Examples • Door Panel: 60 kg (30 kg × 2 panels) • Side Panel: 140 kg (70 kg × 2 panels) • Floor Assembly (Underbody): 250 kg |
| Maximum Conveyed Item Size |
Door L 1,300 mm H 1,400 mm W 500 mm Side Panel L 3,800 mm H 1,600 mm W 600 mm Roof L 2,950 mm H 200 mm W 1,200 mm |
|
| Minimum Conveyed Item Size | No Restrictions | |
| Chain Pitch | Depends on the conveyed item size | Operate with a minimum spacing of approximately 1,000 mm between items |
| Chain Specification | TH050 Free Curve RF2050S (Work Conveyor) |
Based on previous installation records. Excludes vertical transfer lifts. |
| Rail Specification | Travel Section: φ34 Pipe | |
| Environmental Resistance | General industrial environment. Not suitable for environments that may cause slippage of the friction drive. | |

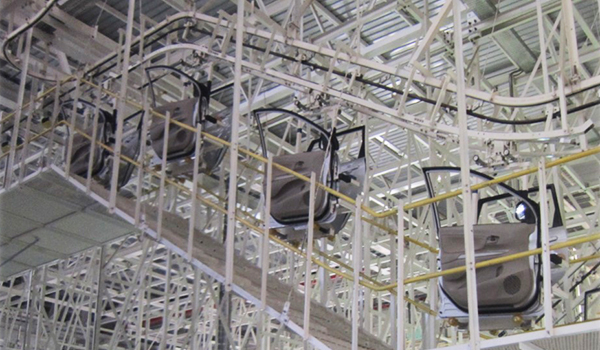

| Examples of Conveyed Items | • Door Assembly Components (before door assembly) • Side Panel Assembly • Inner Assembly • Roof Panel • Front Underbody Component (1) • Front Underbody Floor (2) • Rear Underbody Floor (3) • Floor Assembly (Underbody), consisting of (1), (2), and (3) |
