Floor-Type Transfer SystemSymcarry®
Floor-type conveyance system for light loads.
- Applications
- Transfer
- Industries
- Automobiles, Motorcycles, Home Appliances, Building Materials, Office Equipment
Features
-
1
Excellent environmental resistance
It can be used for material handling in a variety of environments, including dust-proof and explosion-proof applications.
-
2
Simple structure
A simple structure reduces the number of components and achieves a 40% weight reduction compared with our previous models, helping shorten installation time.
-
3
Proven track record
Based on the Tsubaki Free Curve System, which has a proven track record with numerous installations.
Index
Images

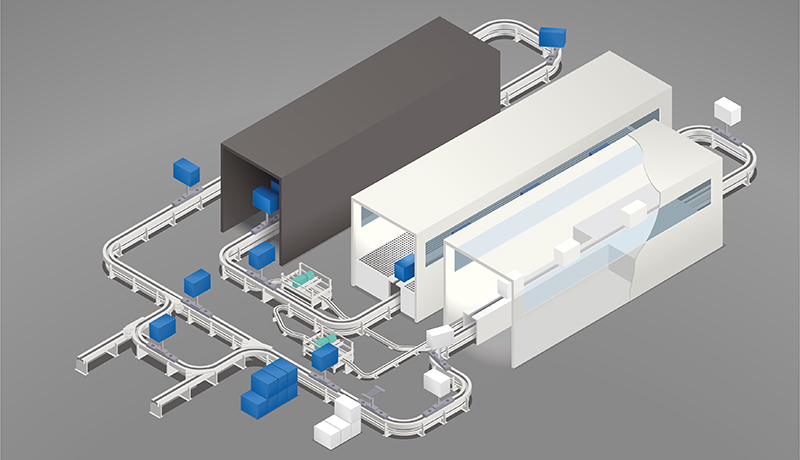

Reference layout: Transport system for painting and oven lines
Specifications
| Type | Short type | Long type |
|---|---|---|
| Applications | Home appliance and digital device components | Automotive exterior and interior components |
| Maximum conveyed item size (L×W×Hmm) | 600X1500X1000 | 1500X2000x1000 |
| Maximum conveyed item weight (excluding carrier) | 10Kg | 50Kg |
| Chain specification | Equivalent to Tsubaki Free Curve TH050 | |
| Environmental Resistance | Dust-Proof, Explosion-Proof, Heat-Resistant (up to 140°C) | |
| Maximum conveyance speed | 15m/min | |
| Rail specification | Horizontal Curve: R600 mm, Vertical Curve: R2400 mm, Angle 30° | |
| Storage pitch | 700mm | 1600mm |
| Options | Conveyed item rotation mechanism, Automatic chain lubrication system, Friction-Type branching unit, Airless System, Remote monitoring (under development) |
|
