Overhead Conveyor SystemTsubaki Free Curve
By effectively utilizing overhead space, a chain with hangers runs along rails stretched throughout the ceiling, allowing for continuous transport of hanging objects.
- Applications
- Transfer
- Industries
- Painting, Home Appliance, Machinery, Food, and Pharmaceutical Industries
Features
-
1
Flexible layout
Capable of handling not only curves but also inclines, the system enables flexible layouts tailored to production lines.
-
2
Extensive lineup
Supports loads from 15 kg to 500 kg per hanger. A wide lineup meets diverse needs, including clean types for dust and oil control as well as heat-resistant types for coating processes.
-
3
Extensive units & options
In addition to core units such as drive and take-up units, a wide range of options is available, including automatic chain lubrication systems and synchronized multi-drive systems.
Index
Images

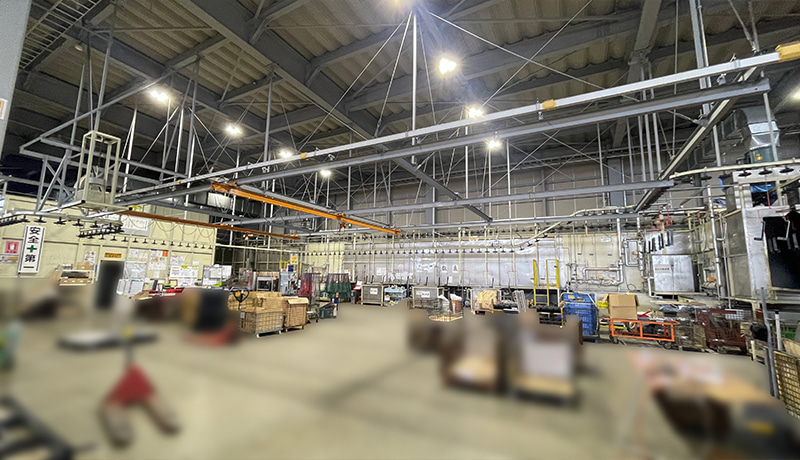

Adopting overhead transport systems helps keep the floor space clear for movement.

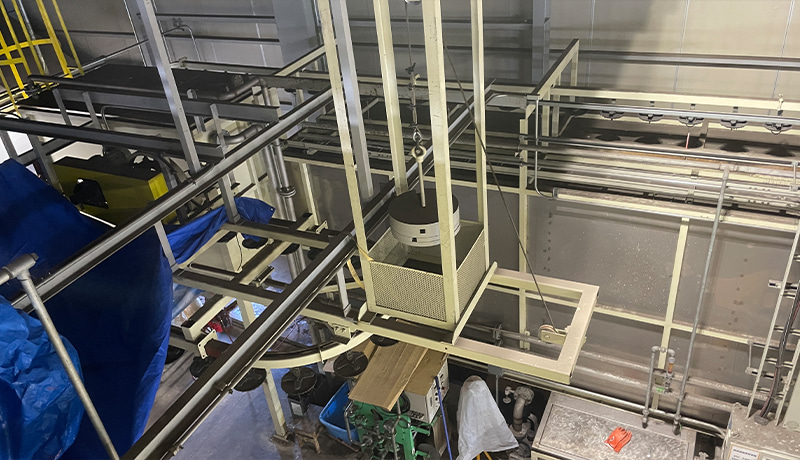

Take-up unit
