Vertical Lift Module
Utilizes overhead space to achieve space-saving storage.
- Purpose
- Storage
- Industries
- Machinery, Automotive, Pharmaceuticals
Features
-
1
Space-saving storage
Space-saving storage that reduces floor space by approximately 50% compared to fixed shelving. Machine size can be adjusted to fit the available installation space, while tray size and shelf pitch can be customized to suit the stored items.
-
2
Stable Storage
Each tray moves independently, eliminating machine troubles caused by unbalanced loads—common in vertical carousel systems—and ensuring gentle handling of stored items.
-
3
Various options
Optimal options are available to suit your application, including inventory management systems, dual pick windows, and barcode reading systems.
Index
Images

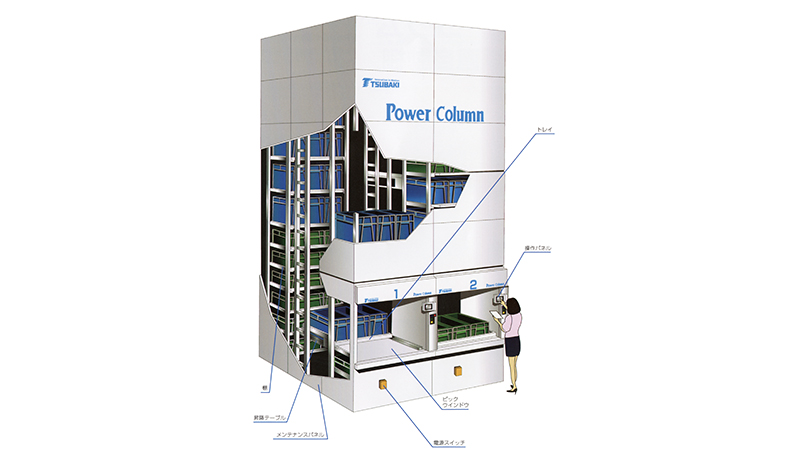

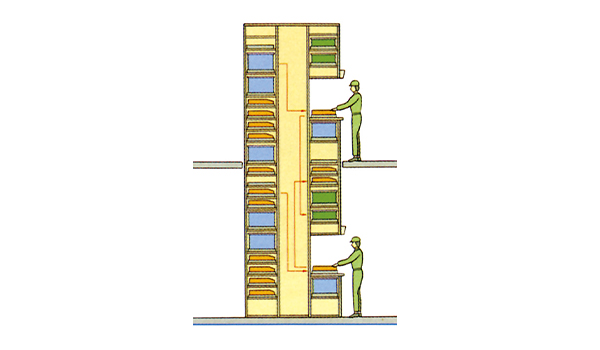

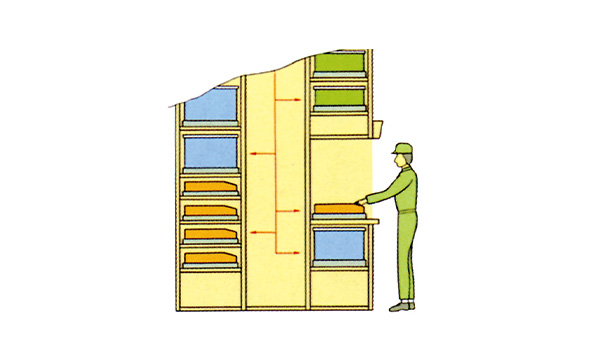

The system delivers the tray directly to the work area.

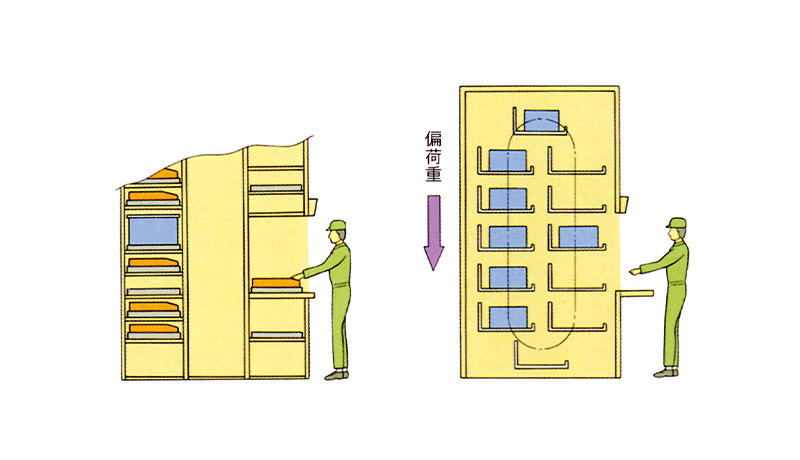

There is no concern about unbalanced load issues common with rotary shelving systems.

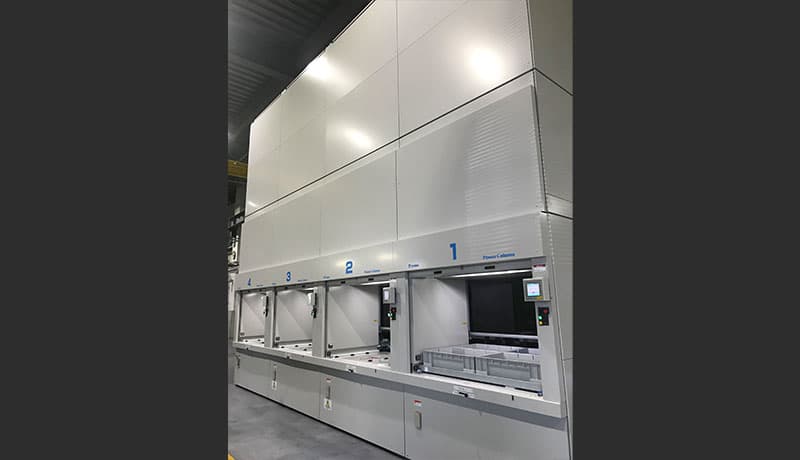

Simple design allows easy expansion and connection.

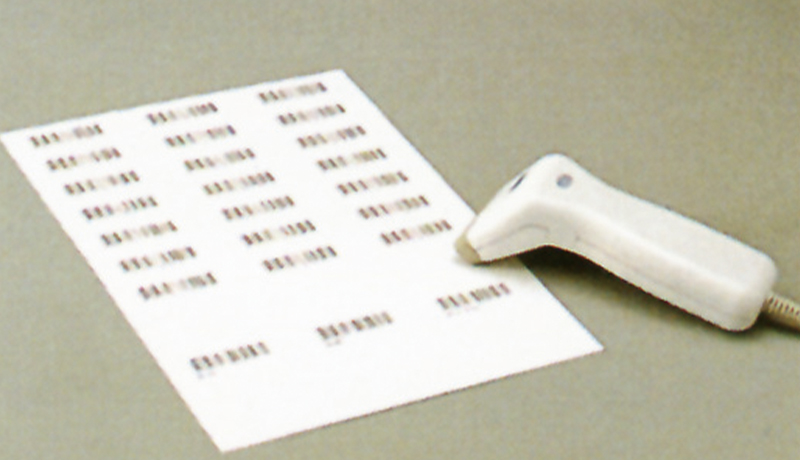

Tray call-up via barcode scanning (optional)

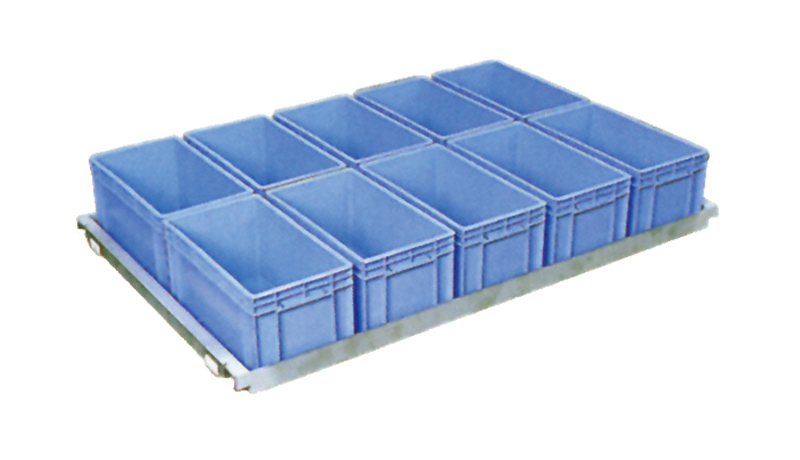

Multi-item storage with tray dividers (optional)

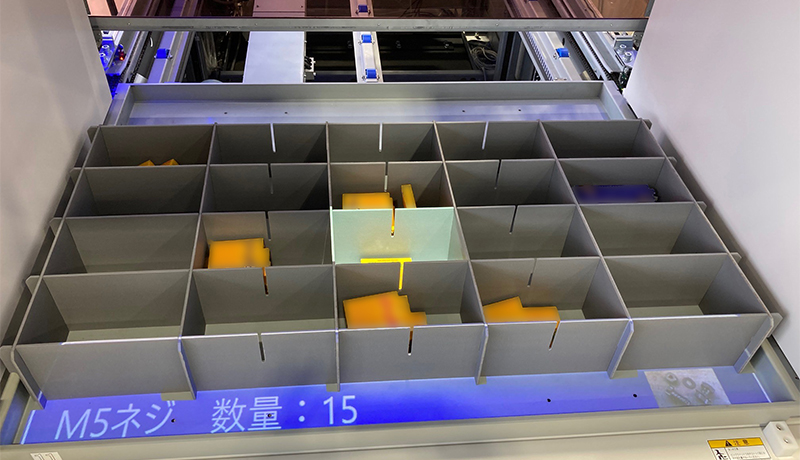

Projection-based picking to prevent human errors (optional)
Standard Specifications
Standard Size

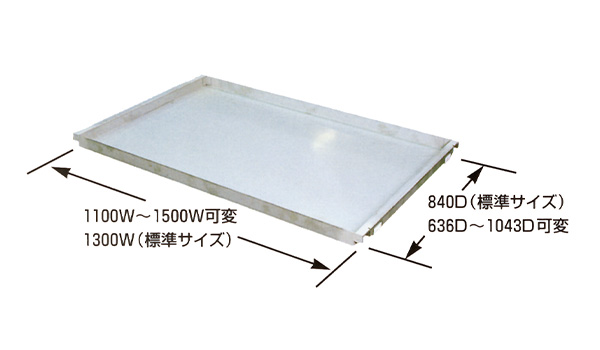

| Machine width per column (W) | Column depth (D) | Tray inner dimensions (mm) | Maximum storable workpiece size (mm) | Minimum shelf pitch | Maximum shelf pitch |
|---|---|---|---|---|---|
| 1,695mm | 2,898mm | 1,300W×840D×55W | 1,500W×1,043D×775H | 25mm | 100mm |
Specifications
| Column height (H) | 4,300mm～6,400mm *Custom specifications available for heights beyond the standard |
|---|---|
| Primary power supply | Three-phase, AC 200/220V, 50/60Hz, 8.0kVA/Column |
| Body color | Light gray |
| Allowable load capacity | 300kg/Tray (Uniform in tray) *With 20,000kg/Column, and 12,000kg/front and rear row |
| Shelf adjustment pitch | 25mm (Adjustment range: 100～800mm) |
